AHP300 Transport Ventilator With Blood Features

Description

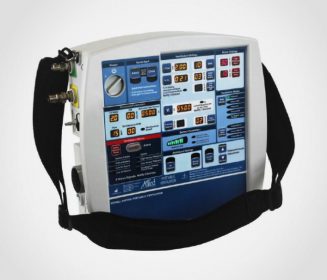

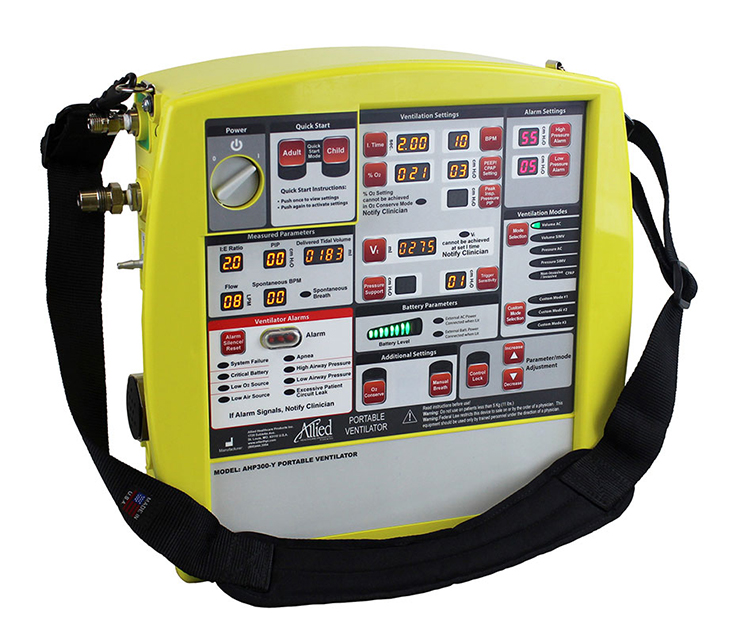

AHP300 Transport Ventilator

Broad Featured Capability: Invasive and non-invasive support for infant (5 kg and up) to adult patients, with a flexible array of ventilation options including Pressure Control/Volume Control ventilation, SIMV/Assist Control spontaneous breath support, and stand-alone CPAP/BiLevel support.

Enhanced Ease of Use: The AHP3oo offers Value – added features for intra-hospital and inter-hospital transport. Quick Start Ventilation – Featuring programmable presets, the AHP 300 allows trained caregivers to rapidly recall up to 5 saved ventilation protocols. Long Battery Life – Up to 7.5 hours on internal battery, with auxiliary battery capability for up to 21 hours of battery life. Oxygen Conserve Mode – Allows the use of low pressure sources (oxygen concentrator, liquid oxygen, etc.) to extend available oxygen.

Multi-Environment Capability: For everyday transport or evacuation from extreme environments, the AHP3oo has you covered. It features rugged shock and vibration resistance, and IPX22 water resistance.

Low Cost of Ownership: Simple preventive maintenance schedule along with low-cost battery and repair parts result in significant savings and lower cost of ownership than comparative broad-featured ventilators.

Product Information

• The latest transport ventilator from a company with a history of great transport ventilators
• Award winning, extensive list of features and capabilities
• Long battery life, up to 7.5 hours on internal battery
• Shock and vibration resistance
• IPX22 water resistance
• Low cost of ownership
• Weighs only 18.8 lbs.
• Available accessories for carrying, mounting, added protection and more
• Manufacturer: Allied Healthcare Products
• Manufacturer’s Product ID: AHP300

Awards and Recognition

• Journal of Emergency Medical Services: Hot Product, EMS Today 2015
• EMS World: 2015 Innovation Awards Finalist

AHP300 Specifications

Patient Range: Infant/Pediatric (5 kg) to Adult

Controls/Settings

Modes

• (Pressure or Volume) A/CMV
• (Pressure or Volume) SIMV
• CPAP
• Bi-Level Support (PS+CPAP) (can be programmed in custom mode)
• NIV (non-invasive ventilation) available in all modes
• 5 Programmable Quick Start Presets

Tidal Volume: 40 to 2,000 ml

RR (Respiratory Rate): 0 or 5 to 60 b/min

I Time (Inspiratory Time): 0.5 to 2.0 sec

PEEP/CPAP: 0 to 25 cmH2O/0 to 25 mbar

PS (Pressure Support)**: 0 to 25 cmH2O / 0 to 25 mbar*

*PEEP + PS cannot exceed 25 cmH2O/mbar Operating Humidity 5 to 95% non-condensing

Flow: 5 to 60 L/min (flows > 80 LPM in PS Mode, CPAP and demand flows)

Pressure Control (Target Pressure): 15 to 55 cmH2O / 15 to 55 mbar

Ptrig (Sensitivity): -5 to -1 cmH2O / -5 to -1 mbar

Manual Inflation: 2 second maximum

FiO2: .21 to 1.00

Maximum I Time: 2 seconds

Flow Wave Pattern: Square or descending**

** Based on mode selected

Auto Lock Function: ON / OFF

Remote Alarm Option: Normally Open/Closed

Monitored Parameters

• Paw (Peak, Base)
• Delivered Tidal Volume
• Spontaneous Breath Count
• Integrated Battery Level
• External Battery Level – When Attached

Calculated Parameters

• I:E Ratio
• Flow rate
• FiO2

Alarms

High Airway Pressure: 10 to 55 cmH2O/10 to 55 mbar

Low Airway Pressure: 5 to 15 cmH2O/5 to 15 mbar

Back-up Ventilation Alert: 20 second fixed, apnea ventilation mode

Low Source O2: Triggers at 40-37 psi

Low Source Air: Triggers at 40-37 psi

Device Alert: Malfunction alert

Critical Battery: Approx. 20 minutes of battery charge remains

Silence/Reset: 110 sec

Pneumatics

Gas Delivery System: Internal dual diaphragm

Air/Oxygen Mixer: Integrated

Oxygen Input: 41 to 87 psig oxygen

Power Requirements

AC Voltage: 110- 240 VAC, 50/60 Hz, max. 1A

DC Voltage: 11-15 VDC, max. 5A

Integrated Battery Parameters

Battery Composition: Sealed Lead Acid

Run time; 100% O2: 7.5 hours

Run time; 60% O2: 7.5 hours

Run time; 100% air (on compressor): 7 hours

W/ External Battery Pack Parameters (MCV-AUXBAT)

Battery Composition: Sealed Lead Acid

Run time; 100% O2: 21 hours

Run time; 60% O2: 21 hours

Run time; 100% air (on compressor): 21 hours

Dimensions & Weight

Width: 13.3″ (34 cm)

Depth: 5.3″ (13 cm)

Height: 13.8″ (35 cm)

Weight: 18.8 lbs. (8.5 kg)

Environmental

Shock: 100 G-Force

Vibration: To IEC 60068-2-6

Operating Temperature: 0° F to 122° F (-18° C to 50° C)

Storage Temperature: -40° F to 140° F (-40° C to 60° C)

Operating Humidity: 5 to 95% non-condensing

Water Ingress: IPx 22

Signal Connections

Remote Alarm: 1/4″ phone jack to connect to nurse call or remote system

Specialty Features

Quick Start: Programmable presets to quickly recall pre-determined ventilation protocols

Custom Modes: 3 additional programmable custom modes that are available for quick recall

Oxygen Conserve: Allows the use of up to 10 LPM of oxygen at 3 to 40 psi through the DISS port or up to 10 LPM of oxygen at less than 10 psi through the low pressure barb fitting for use with oxygen concentrator
