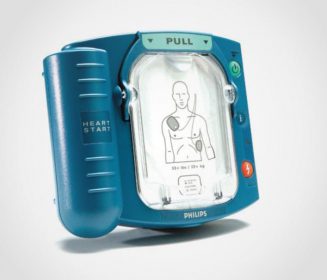

Philips HeartStart OnSite Defibrillator Kit M5066A
The Philips HeartStart OnSite Defibrillator is designed for the ordinary person in the extraordinary moment. It is easy to set-up and includes automatic Life Guidance features like voice prompts and CPR coaching to help guide you through the treatment of sudden cardiac arrest.
- Defibrillator designed for use by everyday people with guided instructions
- The HeartStart OnSite Defibrillator treats the most common cause of Sudden Cardiac Arrest by delivering a shock to the heart
- Easy to use and with minimal training non-medical people can potentially save the life of a co-worker, friend, or anyone else stricken with sudden cardiac arrest
- Four year Standby Life when battery installed by install-by date
- Infant/Child SMART Pads cartridge available, must have prescription
- This version is sold as a kit and the kit contents are listed below
- Sold individually, contact us for multiple order pricing
- Manufacturer: Philips
- Manufacturer’s Product ID: M5066A

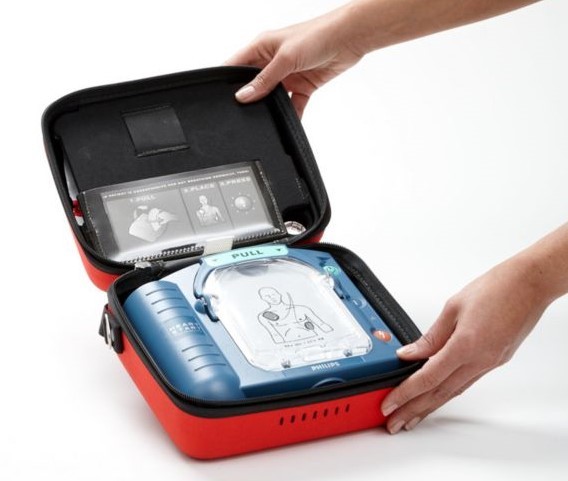

This Defibrillator Kit Includes:
- Philips HeartStart OnSite Defibrillator
- Battery (one, pre-installed)
- SMART Pads (one set, pre-installed)
- Set-up/maintenance guide with expiration date tags
- Owner’s manual
- Quick reference guide
Please note: due to the high amount of fraudulent orders for defibrillators, payment is required before we ship any orders. No credit terms for new customers. We only ship defibrillators to a valid business address. We do not ship any machines to residential addresses (house, apartment, etc.).
Step-by-step guidance so you know exactly what to do
OnSite has a clean and simple interface that’s easy to use and understand. Its voice instructions guide you through the entire process, from placing the pads, to delivering a shock, to performing CPR. You won’t get lost because the intelligent sensors can detect what step you’re on and adjust to your level of expertise.
Instructions that adapt to your pace
When you place the SMART pads on the victim’s bare skin, they adapt the defibrillator’s instructions to your actions. They follow your pace so they don’t overwhelm, run ahead, or slow you down. If needed, the prompts are repeated or rephrased, sometimes even including additional instructions to help you understand.
Personalized therapy for each patient

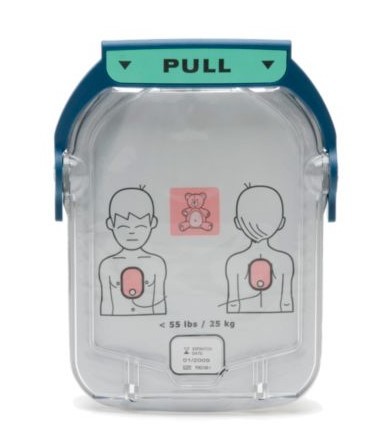

Before you can deliver a shock, the OnSite automatically checks to make sure a shock is necessary and that the right therapy is given. If you install the infant/child SMART Pads, the defibrillator will automatically adjust to a lower energy level and modify the coaching instructions to provide infant/child CPR. (Infant/Child SMART Pads cartridge is not included in this kit, sold separately.)
Ready to use when you need it
Setting up the OnSite is easy and quick. The pads and battery are already installed. Just pull the green tab to launch the initial self-test. After that, the OnSite performs daily self-tests so you can trust that it is ready-to-go if needed.
Fast shocks to improve treatment success
Since minimizing the time to shock after the last CPR compression may improve survival, shock delivery time is critical. The Onsite is among the fastest in class at delivering shock treatment after CPR*.
Easy to train your team
The OnSite easily converts to a training unit when you attach training pads—no need to purchase separate equipment to practice rescue scenarios with your team. These special pads prevent the defibrillator from delivering a shock and activate its training mode which includes eight different emergency scenarios.
*The manufacturer has research and other materials to support this statement. Contact the manufacturer for more product specifics and research documentation.
Product Specifications | |
Kit Contents | Defibrillator, battery (one, pre-installed), SMART Pads (one set, pre-installed), set-up/maintenance guide with expiration date tags, owner’s manual, quick reference guide |
Waveform | SMART Truncated exponential biphasic. Waveform parameters adjusted as a function of patient impedance |
Defibrillation peak current – Adult | 32 A (150 J nominal) into a 50 ohm load |
Defibrillation peak current – Pediatric | 19 A (50 J nominal) into a 50 ohm load (using optional infant/child SMART Pads Cartridge) |
Shock-to-Shock Cycle Time | Typically less than 20 seconds between shocks in a series |
Quick Shock | Able to deliver a shock after the end of a CPR interval, typically in eight seconds |
Voice Instructions | Detailed voice messages guide responder through use of the defibrillator |
CPR Coaching | Instructions for adult and infant/child CPR available at user selection |
Shock Delivery | Via adhesive pads placed on patient’s bare skin as illustrated on pads |
Controls | Green SMART Pads cartridge handle, green On/Off button, blue i-button, orange Shock button |
Indicators | Ready light, blue i-button, caution light |
Environmental/Physical Requirements | |
Sealing | Solid objects per EN60529 class IP2X; Drip-proof per EN60529 class IPX1 |
Operating Temperature | 0 – 50 °C (32 – 122 °F) °C (°F) |
Standby Temperature | 0 – 43 °C (32 – 109 °F) °C (°F) |
Operating Humidity | 0 to 95 % relative humidity (non-condensing) |
Standby Humidity | 0 to 75 % relative humidity (non-condensing) |
Operating Altitude | 0 to 4,500 m (0 to 15,000 ft) m (ft) |
Standby Altitude | > 48 hours from 0 to 8,500 ft and <48 hours from 8,500 to 15,000 ft ft |
Shock/Drop Abuse Tolerance | Withstands 1 meter drop to any edge, corner, or surface |
Vibration | Meets EN1789 random and swept sine, road ambulance specification in operating and standby states |
EMI (Radiated/Immunity) | Meets EN55011 Group 1 Level B Class B and EN61000-4-3 |
Battery | |
Type | 9 volt DC, 4.2 Ah, composed of disposable long-life lithium manganese dioxide primary cells |
Capacity | Minimum 200 shocks or 4 hours of operating time (EN60601-2-4:2003) |
Install-by Date | Battery is labeled with an install-by date of at least five years from date of manufacture |
Standby Life | Four years typical when battery is installed by the install-by date. (Will power the AED in standby state within the specified Standby Temperature range, assuming one battery insertion test and no defibrillation uses) |
SMART Pads | |
Energy delivered | Adult: nominal 150 joules into a 50 ohm load; Infant/Child: nominal 50 joules into a 50 ohm load |
How Supplied | Disposable cartridge, containing adhesive defibrillation pads, clicks into defibrillator for an integrated pads solution |
Active Surface Area | 85 cm² (13.2 in²) each cm² (in²) |
Cable Length | Adult pads: 137 cm (54″); Infant/Child pads: 102 cm (40″) cm (inch) |
Use-by Date | Cartridge is labeled with a use-by date of at least two years from date of manufacture |
Training pads (optional) | Special pads put HeartStart OnSite into training mode and disable its energy delivery capability. Training pads feature 8 real-world training scripts. Use with training mat (included) or with adapters on manikins |
Automated and User-activated Self-tests | |
Daily Automatic Self-tests | Tests internal circuitry, waveform delivery system, pads cartridge, and battery capacity |
Pads Integrity Test | Specifically tests readiness-for-use of pads (gel moisture) |
Battery Insertion Test | Upon battery insertion, extensive automatic self-tests and user-interactive tests check device readiness |
Status Indicator | Blinking green “Ready” light indicates ready for use. Audible “chirp” indicates need for maintenance |
Data Recording and Transmission | |
Infrared | Wireless transmission of event data to a PC or Palm PDA, using the IrDA protocol |
Data Stored | First 15 minutes of ECG and the entire incident’s events and analysis decisions |
